Doing some work -- wiring

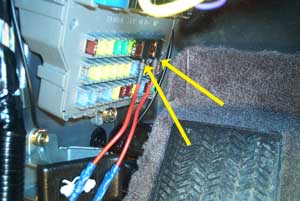

I put in two add-a-circuits. One to power the inverter for the PS2 (the PS2 draws 45W), and the other to power the Navi conversion box, AV switcher and LCD screens.

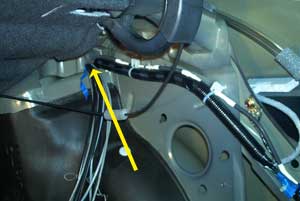

Here are some of the wires that I passed from the trunk to the rest of the car.

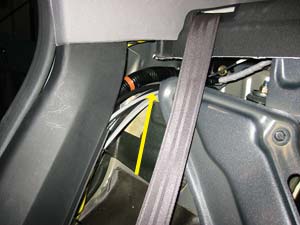

Here's where the wires come out behind the backseat.

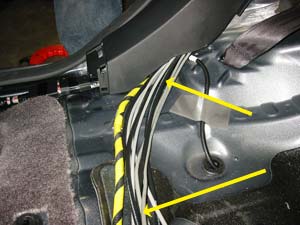

The wires then run under the backseat.

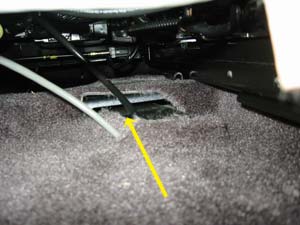

Fish the wires from under the backseat through the carpet to under the front seats and pull them up through this hole.

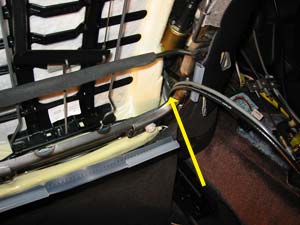

Then bring the wires through the under covering of the seat and up through the corner where the back of the seat meets the bottom.

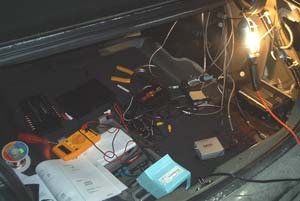

A shot of the mess in the trunk once the soldering got under way.

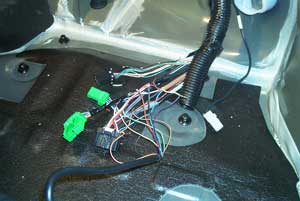

Here I've started the wiring of the Sokolov box.

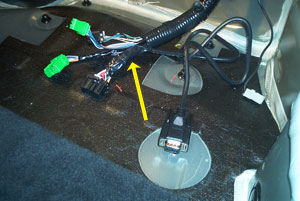

And here it is all finished.
